LinuxCNC config for Proxxon MF70

Note: this is here for when I forget or lose my settings. This file will be different for even nearly-identical setups, depending on the mill, controller, wiring, etc. so it at best a very rough guide.

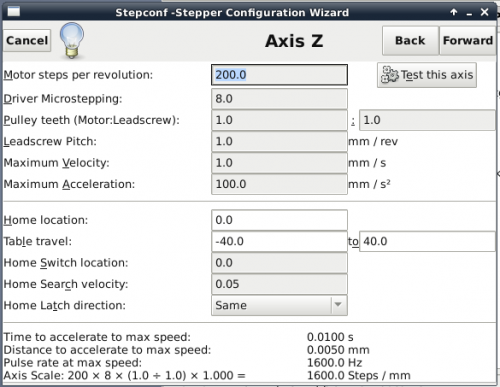

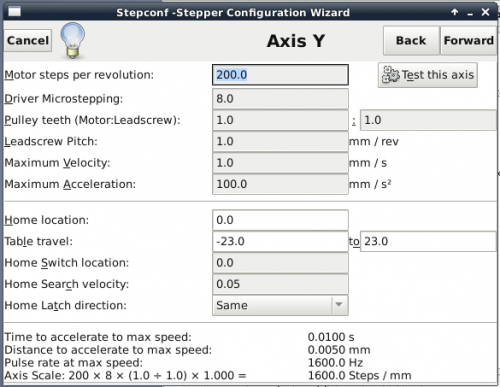

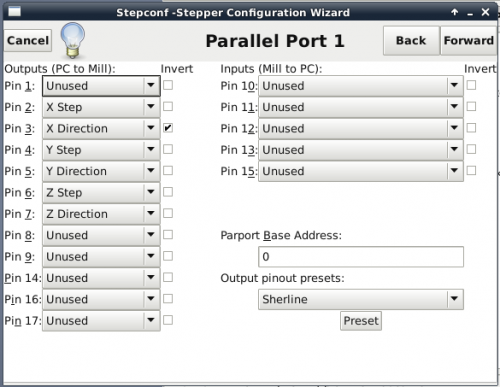

Port + axis settings





Stepconf

ProxxonMF70.stepconf
<?xml version="1.0" ?>
<stepconf>
  <property name="ahomepos" type="int" value="0"/>
  <property name="ahomesw" type="int" value="0"/>
  <property name="ahomevel" type="float" value="0.0"/>
  <property name="alatchdir" type="int" value="0"/>
  <property name="aleadscrew" type="float" value="1.0"/>
  <property name="amaxacc" type="float" value="0.0"/>
  <property name="amaxlim" type="float" value="0.0"/>
  <property name="amaxvel" type="float" value="0.0"/>
  <property name="amicrostep" type="int" value="1"/>
  <property name="aminlim" type="float" value="0.0"/>
  <property name="apulleyden" type="int" value="1"/>
  <property name="apulleynum" type="int" value="1"/>
  <property name="ascale" type="int" value="0"/>
  <property name="asteprev" type="int" value="200"/>
  <property name="axes" type="int" value="0"/>
  <property name="classicladder" type="bool" value="False"/>
  <property name="createshortcut" type="bool" value="True"/>
  <property name="createsymlink" type="bool" value="True"/>
  <property name="customhal" type="int" value="1"/>
  <property name="digitsin" type="float" value="15.0"/>
  <property name="digitsout" type="float" value="15.0"/>
  <property name="dirhold" type="float" value="100000.0"/>
  <property name="dirsetup" type="float" value="100000.0"/>
  <property name="drivertype" type="string" value="other"/>
  <property name="floatsin" type="float" value="10.0"/>
  <property name="floatsout" type="float" value="10.0"/>
  <property name="halui" type="bool" value="False"/>
  <property name="ioaddr" type="string" value="0"/>
  <property name="ioaddr2" type="string" value="1"/>
  <property name="ioaddr3" type="string" value="Enter Address"/>
  <property name="ladderconnect" type="bool" value="True"/>
  <property name="ladderhaltype" type="int" value="0"/>
  <property name="laddername" type="string" value="custom.clp"/>
  <property name="latency" type="float" value="15000.0"/>
  <property name="machinename" type="string" value="Proxxon_MF70"/>
  <property name="manualtoolchange" type="bool" value="True"/>
  <property name="md5sums" type="eval" value="[]"/>
  <property name="modbus" type="bool" value="False"/>
  <property name="number_pports" type="int" value="1"/>
  <property name="period" type="int" value="25000"/>
  <property name="pin1" type="string" value="unused-output"/>
  <property name="pin10" type="string" value="din-00"/>
  <property name="pin10inv" type="bool" value="False"/>
  <property name="pin11" type="string" value="din-01"/>
  <property name="pin11inv" type="bool" value="False"/>
  <property name="pin12" type="string" value="din-02"/>
  <property name="pin12inv" type="bool" value="False"/>
  <property name="pin13" type="string" value="din-03"/>
  <property name="pin13inv" type="bool" value="False"/>
  <property name="pin14" type="string" value="unused-output"/>
  <property name="pin14inv" type="bool" value="False"/>
  <property name="pin15" type="string" value="estop-ext"/>
  <property name="pin15inv" type="bool" value="False"/>
  <property name="pin16" type="string" value="unused-output"/>
  <property name="pin16inv" type="bool" value="False"/>
  <property name="pin17" type="string" value="dout-00"/>
  <property name="pin17inv" type="bool" value="False"/>
  <property name="pin1inv" type="bool" value="False"/>
  <property name="pin2" type="string" value="xstep"/>
  <property name="pin2inv" type="bool" value="False"/>
  <property name="pin3" type="string" value="xdir"/>
  <property name="pin3inv" type="bool" value="True"/>
  <property name="pin4" type="string" value="ystep"/>
  <property name="pin4inv" type="bool" value="False"/>
  <property name="pin5" type="string" value="ydir"/>
  <property name="pin5inv" type="bool" value="False"/>
  <property name="pin6" type="string" value="zstep"/>
  <property name="pin6inv" type="bool" value="False"/>
  <property name="pin7" type="string" value="zdir"/>
  <property name="pin7inv" type="bool" value="False"/>
  <property name="pin8" type="string" value="unused-output"/>
  <property name="pin8inv" type="bool" value="False"/>
  <property name="pin9" type="string" value="unused-output"/>
  <property name="pin9inv" type="bool" value="False"/>
  <property name="pp2_direction" type="int" value="0"/>
  <property name="pp2_pin1" type="string" value="unused-output"/>
  <property name="pp2_pin10_in" type="string" value="unused-input"/>
  <property name="pp2_pin10_in_inv" type="int" value="0"/>
  <property name="pp2_pin11_in" type="string" value="unused-input"/>
  <property name="pp2_pin11_in_inv" type="int" value="0"/>
  <property name="pp2_pin12_in" type="string" value="unused-input"/>
  <property name="pp2_pin12_in_inv" type="int" value="0"/>
  <property name="pp2_pin13_in" type="string" value="unused-input"/>
  <property name="pp2_pin13_in_inv" type="int" value="0"/>
  <property name="pp2_pin14" type="string" value="unused-output"/>
  <property name="pp2_pin14inv" type="int" value="0"/>
  <property name="pp2_pin15_in" type="string" value="unused-input"/>
  <property name="pp2_pin15_in_inv" type="int" value="0"/>
  <property name="pp2_pin16" type="string" value="unused-output"/>
  <property name="pp2_pin16inv" type="int" value="0"/>
  <property name="pp2_pin17" type="string" value="unused-output"/>
  <property name="pp2_pin17inv" type="int" value="0"/>
  <property name="pp2_pin1inv" type="int" value="0"/>
  <property name="pp2_pin2" type="string" value="unused-output"/>
  <property name="pp2_pin2_in" type="string" value="unused-input"/>
  <property name="pp2_pin2_in_inv" type="int" value="0"/>
  <property name="pp2_pin2inv" type="int" value="0"/>
  <property name="pp2_pin3" type="string" value="unused-output"/>
  <property name="pp2_pin3_in" type="string" value="unused-input"/>
  <property name="pp2_pin3_in_inv" type="int" value="0"/>
  <property name="pp2_pin3inv" type="int" value="0"/>
  <property name="pp2_pin4" type="string" value="unused-output"/>
  <property name="pp2_pin4_in" type="string" value="unused-input"/>
  <property name="pp2_pin4_in_inv" type="int" value="0"/>
  <property name="pp2_pin4inv" type="int" value="0"/>
  <property name="pp2_pin5" type="string" value="unused-output"/>
  <property name="pp2_pin5_in" type="string" value="unused-input"/>
  <property name="pp2_pin5_in_inv" type="int" value="0"/>
  <property name="pp2_pin5inv" type="int" value="0"/>
  <property name="pp2_pin6" type="string" value="unused-output"/>
  <property name="pp2_pin6_in" type="string" value="unused-input"/>
  <property name="pp2_pin6_in_inv" type="int" value="0"/>
  <property name="pp2_pin6inv" type="int" value="0"/>
  <property name="pp2_pin7" type="string" value="unused-output"/>
  <property name="pp2_pin7_in" type="string" value="unused-input"/>
  <property name="pp2_pin7_in_inv" type="int" value="0"/>
  <property name="pp2_pin7inv" type="int" value="0"/>
  <property name="pp2_pin8" type="string" value="unused-output"/>
  <property name="pp2_pin8_in" type="string" value="unused-input"/>
  <property name="pp2_pin8_in_inv" type="int" value="0"/>
  <property name="pp2_pin8inv" type="int" value="0"/>
  <property name="pp2_pin9" type="string" value="unused-output"/>
  <property name="pp2_pin9_in" type="string" value="unused-input"/>
  <property name="pp2_pin9_in_inv" type="int" value="0"/>
  <property name="pp2_pin9inv" type="int" value="0"/>
  <property name="pp3_direction" type="int" value="0"/>
  <property name="pyvcp" type="bool" value="False"/>
  <property name="pyvcpconnect" type="bool" value="False"/>
  <property name="pyvcphaltype" type="int" value="0"/>
  <property name="pyvcpname" type="string" value="blank.xml"/>
  <property name="s32in" type="float" value="10.0"/>
  <property name="s32out" type="float" value="10.0"/>
  <property name="sim_hardware" type="bool" value="False"/>
  <property name="spindlecarrier" type="float" value="100.0"/>
  <property name="spindlecpr" type="float" value="100.0"/>
  <property name="spindlefiltergain" type="float" value="0.01"/>
  <property name="spindlenearscale" type="float" value="1.5"/>
  <property name="spindlepwm1" type="float" value="0.2"/>
  <property name="spindlepwm2" type="float" value="0.8"/>
  <property name="spindlespeed1" type="float" value="100.0"/>
  <property name="spindlespeed2" type="float" value="800.0"/>
  <property name="stepspace" type="float" value="50000.0"/>
  <property name="steptime" type="float" value="50000.0"/>
  <property name="tempexists" type="int" value="0"/>
  <property name="units" type="int" value="1"/>
  <property name="usespindleatspeed" type="bool" value="False"/>
  <property name="xhomepos" type="float" value="0.0"/>
  <property name="xhomesw" type="float" value="0.0"/>
  <property name="xhomevel" type="float" value="0.05"/>
  <property name="xlatchdir" type="int" value="0"/>
  <property name="xleadscrew" type="float" value="1.0"/>
  <property name="xmaxacc" type="float" value="100.0"/>
  <property name="xmaxlim" type="float" value="67.0"/>
  <property name="xmaxvel" type="float" value="2.0"/>
  <property name="xmicrostep" type="float" value="8.0"/>
  <property name="xminlim" type="float" value="-67.0"/>
  <property name="xpulleyden" type="float" value="1.0"/>
  <property name="xpulleynum" type="float" value="1.0"/>
  <property name="xscale" type="float" value="1600.0"/>
  <property name="xsteprev" type="float" value="200.0"/>
  <property name="yhomepos" type="float" value="0.0"/>
  <property name="yhomesw" type="float" value="0.0"/>
  <property name="yhomevel" type="float" value="0.05"/>
  <property name="ylatchdir" type="int" value="0"/>
  <property name="yleadscrew" type="float" value="1.0"/>
  <property name="ymaxacc" type="float" value="100.0"/>
  <property name="ymaxlim" type="float" value="23.0"/>
  <property name="ymaxvel" type="float" value="2.0"/>
  <property name="ymicrostep" type="float" value="8.0"/>
  <property name="yminlim" type="float" value="-23.0"/>
  <property name="ypulleyden" type="float" value="1.0"/>
  <property name="ypulleynum" type="float" value="1.0"/>
  <property name="yscale" type="float" value="1600.0"/>
  <property name="ysteprev" type="float" value="200.0"/>
  <property name="zhomepos" type="float" value="0.0"/>
  <property name="zhomesw" type="float" value="0.0"/>
  <property name="zhomevel" type="float" value="0.05"/>
  <property name="zlatchdir" type="int" value="0"/>
  <property name="zleadscrew" type="float" value="1.0"/>
  <property name="zmaxacc" type="float" value="100.0"/>
  <property name="zmaxlim" type="float" value="40.0"/>
  <property name="zmaxvel" type="float" value="2.0"/>
  <property name="zmicrostep" type="float" value="8.0"/>
  <property name="zminlim" type="float" value="-40.0"/>
  <property name="zpulleyden" type="float" value="1.0"/>
  <property name="zpulleynum" type="float" value="1.0"/>
  <property name="zscale" type="float" value="1600.0"/>
  <property name="zsteprev" type="float" value="200.0"/>
</stepconf>

INI

ProxxonMF70.ini
# Generated by stepconf 1.1 at Sat Dec 29 19:12:03 2018
# If you make changes to this file, they will be
# overwritten when you run stepconf again

[EMC]
MACHINE = Proxxon_MF70
DEBUG = 0

[DISPLAY]
DISPLAY = axis
EDITOR = gedit
POSITION_OFFSET = RELATIVE
POSITION_FEEDBACK = ACTUAL
ARCDIVISION = 64
GRIDS = 10mm 20mm 50mm 100mm 1in 2in 5in 10in
MAX_FEED_OVERRIDE = 1.2
MIN_SPINDLE_OVERRIDE = 0.5
MAX_SPINDLE_OVERRIDE = 1.2
DEFAULT_LINEAR_VELOCITY = 0.20
MIN_LINEAR_VELOCITY = 0
MAX_LINEAR_VELOCITY = 2.00
INTRO_GRAPHIC = linuxcnc.gif
INTRO_TIME = 5
PROGRAM_PREFIX = /home/jin/linuxcnc/nc_files
INCREMENTS = 5mm 1mm .5mm .1mm .05mm .01mm .005mm

[FILTER]
PROGRAM_EXTENSION = .png,.gif,.jpg Greyscale Depth Image
PROGRAM_EXTENSION = .py Python Script
png = image-to-gcode
gif = image-to-gcode
jpg = image-to-gcode
py = python

[TASK]
TASK = milltask
CYCLE_TIME = 0.010

[RS274NGC]
PARAMETER_FILE = linuxcnc.var

[EMCMOT]
EMCMOT = motmod
COMM_TIMEOUT = 1.0
COMM_WAIT = 0.010
BASE_PERIOD = 100000
SERVO_PERIOD = 1000000

[HAL]
HALFILE = Proxxon_MF70.hal
HALFILE = custom.hal
POSTGUI_HALFILE = custom_postgui.hal

[TRAJ]
AXES = 3
COORDINATES = X Y Z
LINEAR_UNITS = mm
ANGULAR_UNITS = degree
CYCLE_TIME = 0.010
DEFAULT_VELOCITY = 0.20
MAX_VELOCITY = 2.00

[EMCIO]
EMCIO = io
CYCLE_TIME = 0.100
TOOL_TABLE = tool.tbl

[AXIS_0]
TYPE = LINEAR
HOME = 0.0
MAX_VELOCITY = 2.0
MAX_ACCELERATION = 100.0
STEPGEN_MAXACCEL = 125.0
SCALE = 1600.0
FERROR = 1
MIN_FERROR = .25
MIN_LIMIT = -67.0
MAX_LIMIT = 67.0
HOME_OFFSET = 0.0

[AXIS_1]
TYPE = LINEAR
HOME = 0.0
MAX_VELOCITY = 2.0
MAX_ACCELERATION = 100.0
STEPGEN_MAXACCEL = 125.0
SCALE = 1600.0
FERROR = 1
MIN_FERROR = .25
MIN_LIMIT = -23.0
MAX_LIMIT = 23.0
HOME_OFFSET = 0.0

[AXIS_2]
TYPE = LINEAR
HOME = 0.0
MAX_VELOCITY = 2.0
MAX_ACCELERATION = 100.0
STEPGEN_MAXACCEL = 125.0
SCALE = 1600.0
FERROR = 1
MIN_FERROR = .25
MIN_LIMIT = -40.0
MAX_LIMIT = 40.0
HOME_OFFSET = 0.0
cnc/reference/mf70_linuxcnc_config.txt ยท Last modified: 2019/05/15 23:44 (external edit)
Show pagesource
Media ManagerBack to top
Driven by DokuWiki Recent changes RSS feed Valid CSS Valid XHTML 1.0
