Notes

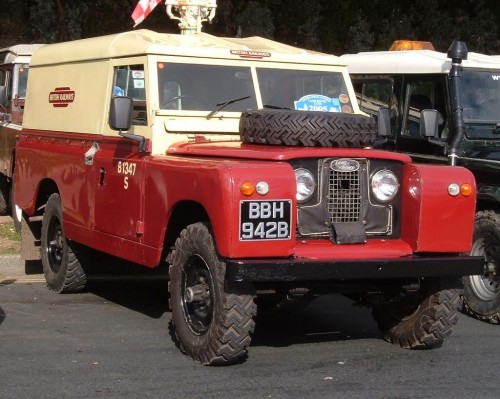

The colour scheme was inspired by a British Railways 109 I saw on the London To Brighton run, it's known in trainspotting circles as “Blood and Custard”:

• http://www.bloodandcustard.org/

It looks like the paint codes are:

• Blood: RAL3005 - Paintman link
  • Railway websites suggest BS381c No. 540
• Custard: RAL20187 - British Leyland (BLMC) Limestone LRC007 - Paintman link
  • “The Cream had a British Railways paint code but does not appear to have had a British Standard colour reference.”

• FTC5202 LOF slave cylinder (a great upgrade)
• FTC5200 Alloy release bearing (a worthwhile upgrade until you fill the bellhousing with muddy water!)

From EMF Rod Ends (Canada) - Heim Joint, Small, 3/4-16 Thread RH Thread / Ball 1.625 x 3/4

Sleeved ends are M12 fine bolts.

Drop arm bolt is 3/4“ UNF x 5”.
