Diff Locks

Edit from future me: These did not perform very well. Write-up will appear here eventually :rolleyes:

Controls

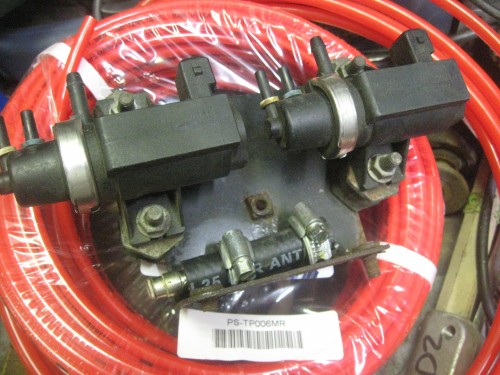

Discovery 2 EGT and/or cruise control actuator solenoids:


Found on loads of cars including TD4 Freelander 1.

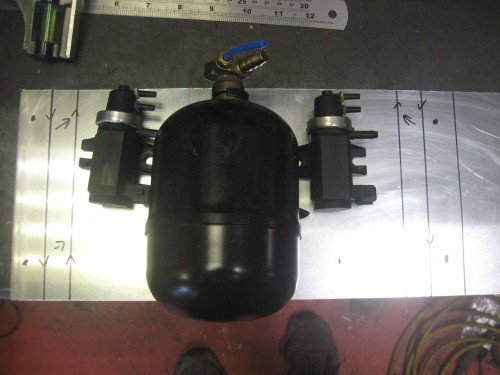

Plus a BMW X5 air suspension tank (it was cheap from a breakers on eBay and looked small enough) for vacuum reservoir, and a bit of ali to mount them on…

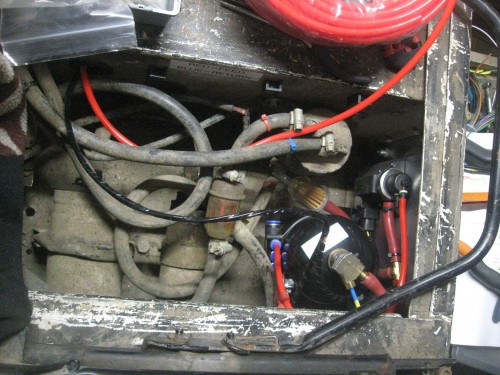

Plumbing under the driver's seat is tight due to the less than perfect fuel plumbing which is a job f'ron:


Plumbing

Re-done in 6mm push-fit with my usual nickel-plated brass Camozzi fittings - look like stainless but don't cost much more than decent plastic ones!

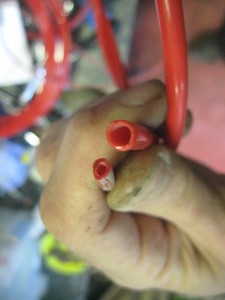

Old plumbing Vs new plumbing

You can see how much more bore we've got by stepping up - something like exponentially lower flow resistance too!

A 10mm push-fit line to feed the vacuum tank, via a non-return valve - I really want this to work properly!

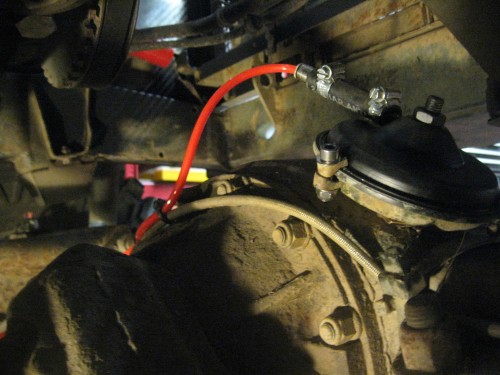

Actuators

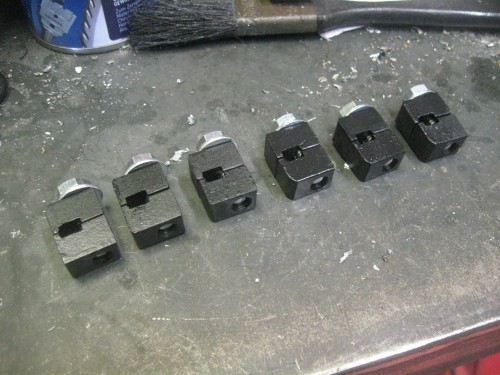

Milling some clampy things out on the lathe…


Coat of paint does wonders.

Onwards to Lights
